Electrical Control Leakage Tracking Tester for Flammability Testing Equipment
Product Introduction with Flammability Testing Equipment:
Standard: IEC 60112, UL746A, IEC60335-1, IEC60598-1 and ASTM D3638-92.and etc.
Application: It is used for determination of the relative resistance to tracking performance that solid electrical insulating material under the action of an electric field, when the surface exposed to water containing impurities.
Test sample: Lighting equipment, low-voltage electrical appliances, household electrical appliances, machine tools, electrical appliances, electric motors, electric tools, electronic instruments, electrical instruments, information technology equipment, insulation materials, engineering plastics, electrical connectors, accessories industry.
Product Features with Flammability Testing Equipment:
The working principle of the leakage tracking test(tracking index testing) is that the conducting liquid (0.1%NH 4 CL) of required volume in the required height (35mm ) and required time (30s) drops with the voltage between the platinum electrodes (2mm× 5mm )on the surface of solid insulating material. Thus the users evaluate the tracking resistance performance of solid insulating material surface under the combined influence of electric field and humid or contaminate medium. In a word, this device is used to measure the compare tracking index (CTI) and electrical resistance index (PTI).
Product Parameters with Flammability Testing Equipment:
| Working voltage | 230V/50Hz, 1KVA |
| Control operation mode | Electrical control, button operation |
| Testing voltage | 0～600V adjustable, precision 1.5％ |
| Timing device | 9999X0.1S |
| Electrode | Material:Platinum electrode and brass connecting rod |
| Size: (5±0.1)×(2±0.1)×(≥12)mm, 30°slant, Tip rounding:R0.1mm |
| Relative position of electrod | Included angle:60°±5°, distance is 4±0.1mm |
| Electrode pressure | 1.00N±0.05N (digital display is optional) |
| Dripping liquid | The interval time of dropping liquid:30±5S, digital display, can be preset |
| Height:35±5mm |
| The number of drips:0-9999 times, can be preset, the volume size of the dripping liquid is controlled by the imported micro pump within 50 ~ 45 drips /cm³ |

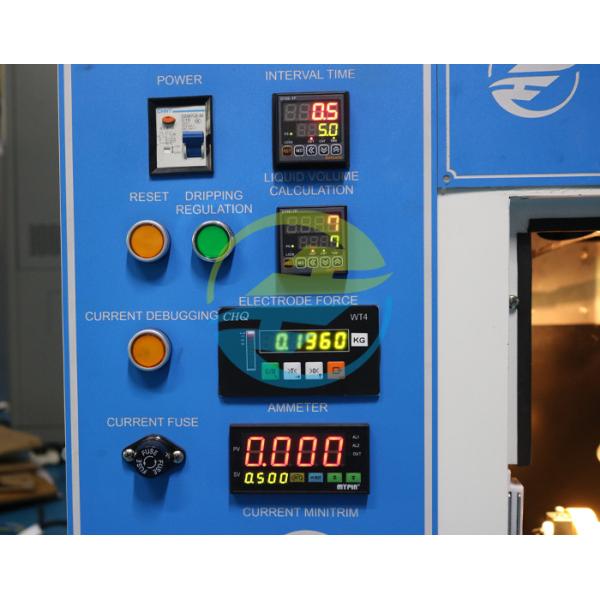

Produtct Image with Flammability Testing Equipment:
Our advantage service:
We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.
Technical support:
All our workers are experienced and skilled.
After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.
About Us:
Guangzhou Hongce Equipment Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
